Architects on farmhouse and villa jobs often draw a climber on the boundary wall or the porch side wall, then mark a wall lantern on the same stretch of plaster. For the first season both look fine. By the second monsoon the creeper has reached the fitting, leaves sit on the glass, and someone on site is pulling stems out of the arm with a ladder. The wall lights page has 54 cast-aluminium codes. A few of them suit a planted wall far better than the rest, and the choice is easiest to make while the wall is still bare plaster.
Before the climber is planted
Fix the point and the cable while the wall is bare
Mark the lantern position on the elevation first, then tell the landscape contractor where it is. The usual mistake on these walls is planting at the foot of the exact spot where the electrician will need a ladder later. Shift the planting pit sideways, or train the main stems to fork around the fitting, so the lantern sits in a window of plaster the gardener trims back to at each visit.
Run the cable concealed inside the wall to a box behind the backplate. On a creeper wall, surface conduit is soon buried under growth, and the stems work their way behind the saddles. Where the wall is already finished and surface conduit is the only option, take it straight up from below rather than across the face where the climber will spread.
The height of the point follows the same rules as any wall lantern, and those are worked through in where to mark wall lantern height.
At the drawing stage
Choose a body shape the creeper can grow around
Look at how each code meets the wall. On a planted wall, that matters more than the decoration on the lantern. Sizes below come from the product pages, height first and width second, with millimetres from the dimension drawings.
| Code | Size | Finish | How it meets the wall |
|---|---|---|---|
| PWL 2564 | 6 × 7 in (152 × 178 mm) | Raw Grey | A flat cast plate with a leaf motif, flush on the plaster. Nothing projects for stems to wrap. |

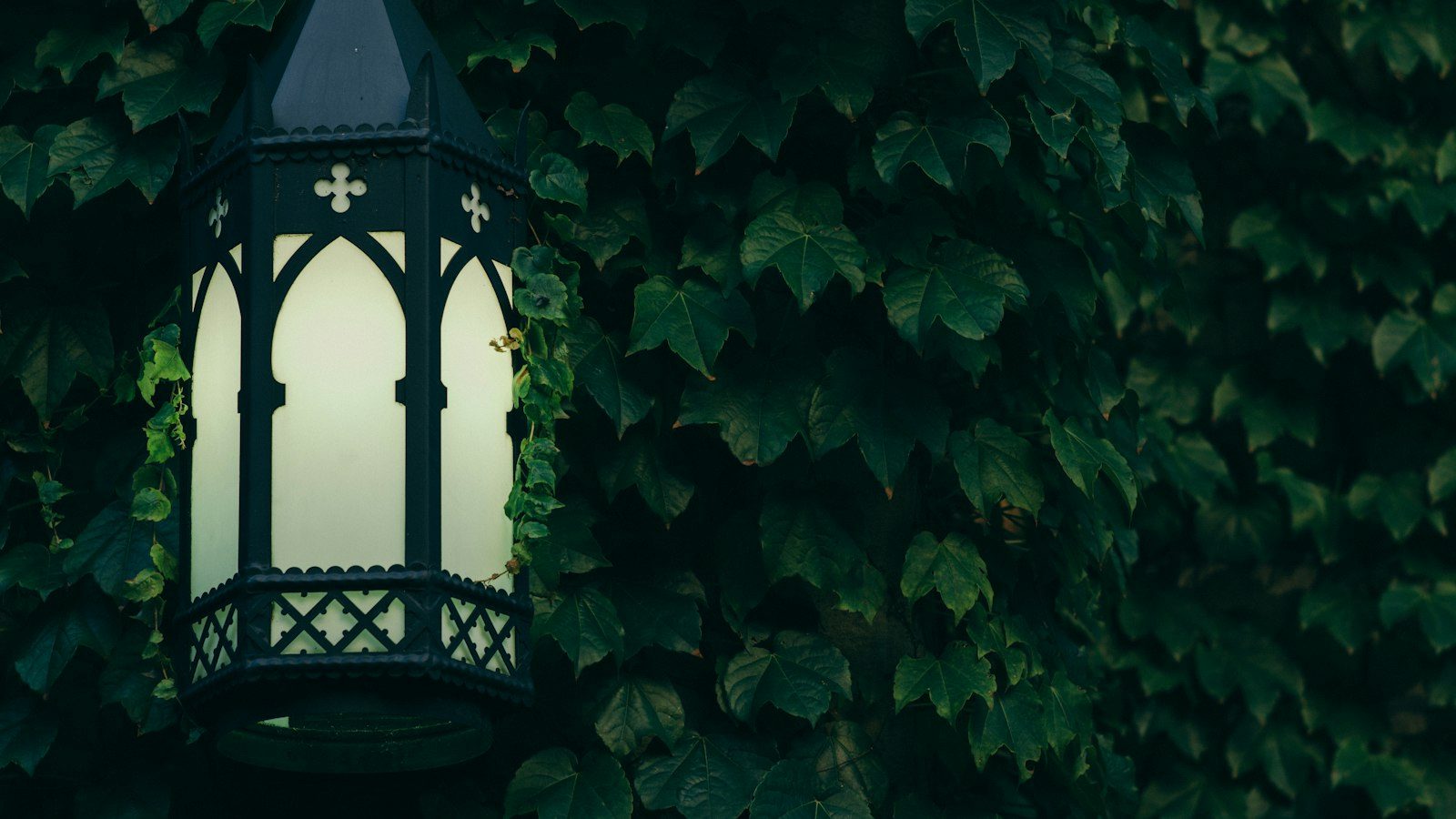

| PWL 2805 | 18 × 9 in (457 × 229 mm) | Raw Grey | A half lantern with pointed arch panels that sits back against the wall. The creeper can frame it closely. |
| PWL 2550 | 13 × 7 in (330 × 178 mm) | Green | Arched-panel lantern hanging from a swan-neck arm, so the glass hangs clear of the leaves. |
| PWL 2553 | 16 × 9 in (406 × 229 mm) | Matte Black | Round hood on a curved arm with a cut scroll. The light points down, away from the foliage above. |
| PWL 2513 | 26 × 8 in (660 × 203 mm) | Antique | Tall lattice lantern on a scroll arm. Suits a high wall where the climber stays below it. |
A flush plate such as PWL 2564 is the easiest to keep clean on a wall that will go completely green, because the gardener can cut along its edge with shears. A lantern on an arm keeps the glass away from the leaves, though the arm itself is something a twining stem will try to climb. The half lantern, PWL 2805, sits between the two and has the pointed Gothic arches that suit an older or colonial elevation.
For finish, PWL 2550 is the one wall code in Green on the site. Against a dense creeper it almost vanishes in daylight, and only the lit glass shows at night. Matte Black reads as a clear outline against leaves, and the Antique wipe sits between the two. Our finish comparison for gate pillars sets the two main finishes side by side.
On fixing day
Glass, lamp and the first trim line
Frosted glass hides the lamp and gives an even glow, which helps on a planted wall where leaf shadows already break up the light. Clear glass throws sharper shadows of every leaf across the plaster. Some clients like that effect on a garden wall, so ask before ordering. Each position is compared in clear or frosted lantern glass.
Every code takes a B22 lamp holder as standard, and an LED lamp is the one to fit. A lamp that runs hot browns the leaves resting on the glass and dries out the stems around the backplate. Once the lantern is up, have the gardener cut the first trim line around it while the fixing is fresh, so everyone on site sees where the bare margin is meant to be.
The first monsoon
When the creeper grows fastest
Climbers put on most of their growth in the rains, and wet leaves pressed against a lantern hold water on the door joint for days. Ask the maintenance staff to trim around each fitting before the monsoon starts and once more in the middle of it. Spiders and insects also collect in a lantern that sits inside thick leaves, so the glass needs a wipe at the same visit. What steady rain does to the castings and the paint is covered in what monsoon does to a gate light.
Once the wall is fully green
Keep the lamp reachable
On a mature creeper wall the lantern door has to open without tearing stems. Before the wall fills in, check how the door or glass comes out on the chosen code, and keep that side clear when trimming. Ivy and creeping fig grip with small roots that leave marks on paint if they are allowed onto the body, so pull them off the casting by hand whenever they reach it. A woody climber such as bougainvillea needs its own wire or trellis. If it is tied to a lantern arm, its weight slowly bends the bracket.
Ordering for a planted wall
On the enquiry, mention that the wall will carry a creeper and send the elevation with the planting marked, so the reply can suggest a body shape alongside the code you picked. Trade lots start at 10 pieces. Product pages list a per-piece price at the Aligarh works. Packing, GST on Indian orders and freight are added on the written quote. Send the codes and the city on WhatsApp at +91 70176 62533, or download the 2026 catalogue PDF to see every wall code at once.
